There are a few uncommon kinds of transformers that are like the more normal sorts of transformers yet have extraordinary components for specific applications. Control transformers are utilized to give low-voltage ability to control frameworks and gadgets.
Control Transformers

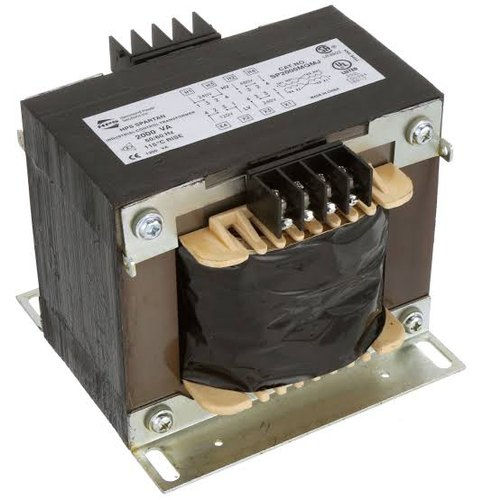

A control transformer is a transformer that is utilized to venture down the voltage to control the control gadgets of a circuit or machine. The decreased voltage gives a lot more secure climate to professionals dealing with the gear. Private warming, ventilating, cooling frameworks, and different machines utilize decreased voltage for the controls, indoor regulators, transfers, and contractors. Control transformers are frequently alluded to as force supplies.
The activity of Control Transformers
Control transformers with two essential curls and one auxiliary loop are the most well-known. A control transformer's essential curls are crossed so that metal connections can be utilized to interface the primaries for 240 V or 480 V activity.
Many control transformers are intended to give 12V or 24V force from the optional. Nonetheless, some control transformers give 120V force. For instance, a Current Transformer Sale with a 10:1 turns proportion can have the two essential curls wired in equal. This means down the essential voltage from 240V to 24V on the auxiliary. At the point when the control transformer's two essential curls are wired in series, the voltage is ventured down from 480V to 24V.
A few plants have a 600V framework that requires the control transformer essential windings to be appraised for 600V. This kind of transformer normally has a double voltage option, which makes this unit profoundly flexible. This kind of transformer regularly conveys 120V or 240V force from the 600V source. Control transformer measures regularly range from 50VA to 3kVA.
Understanding Control Transformer Sizing
There are three qualities of a circuit that are not really set in stone prior to choosing a control transformer. The three qualities are fixed VA, inrush VA, and inrush load power factor. The fixed VA is the force, in VA, that the transformer should convey to the heap for a lengthy timeframe. The inrush VA is the force, in VA, that the transformer should convey to the heap upon startup. The inrush VA can frequently be multiple times the fixed VA. The inrush load power factor is the force factor of the inrush current. The inrush load power factor is hard to decide, yet 40% is a sensible gauge for most circumstances. Producers give tables to help in the choice.
The control transformer's size can be determined by adding the force prerequisites of the parts in the control circuit. For instance, warming, ventilating, and cooling (HVAC) building regulators might require 10VA of 24V force. The regulator likewise gives the capacity to two stickiness sensors and two electronic/pneumatic transducers. The two sensors and two transducers require 3VA each for an amount of 12VA. Subsequently, the control transformer ought to be estimated to give basically 22VA (10 + 12 = 22) of fixed VA.
Small Control Transformers
Cycles regularly change over the long haul, with the outcome that control frameworks are altered to coordinate with the changes. Extra transfers and contactors might be introduced disregarding the size of the control transformer. In the event that the control transformer isn't supplanted, it very well might be small for the new circuits. At the point when the absolute burden associated with a control transformer surpasses the rating of the transformer, the voltage yield of the transformer diminishes.
A circuit can be hard to investigate if the control transformer is small. A specialist needs to see how the other hardware in the circuit ought to work. For example, a hand-off, starter, or contactor has two force appraisals. The lower rating is the hold-in VA rating. The higher rating is the draw in the VA rating.
The altered control framework might have sufficient ability to hold in an armature, however, it might not have sufficient ability to pull in the armature. In this manner, the transfer, contactor, or starter can't close and finish the circuit. Nonetheless, if the armature is physically pushed in, the circuit will work ordinarily.
It can likewise be hard to decide when a Control Transformer Sale is modest on the grounds that most investigating estimations are taken when all or practically all heaps in a circuit are OFF. An advanced multimeter set to record the base and most extreme voltage can be utilized to distinguish a low-voltage condition brought about by circuit over-burdening.
