Figure out how to securely and adequately utilize a multimeter for taking electrical estimations.

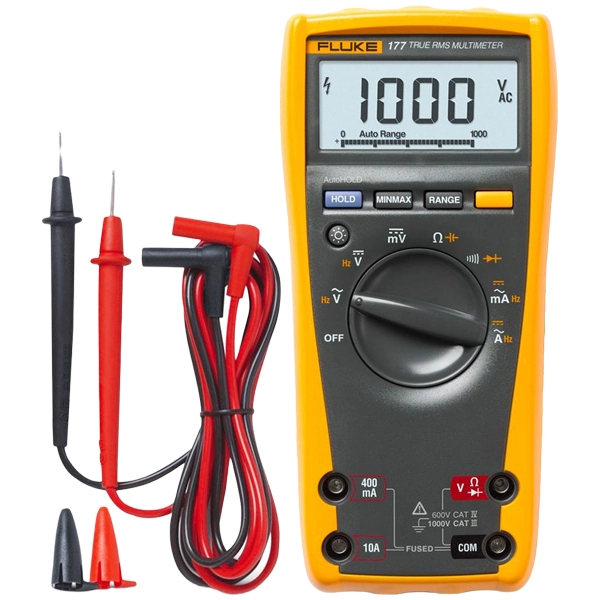

The advanced multimeter, or DMM, resembles an electronic measuring tape for taking electrical estimations. It utilizes an advanced presentation to show, for instance, volts, ohms, and amperes. Different elements, for example, a capacitor checker, temperature analyzer, and diode analyzer are accessible on certain models. A typical DMM is displayed. Wearing gloves provides the client with an additional layer of assurance against shock.
A meter that utilizes a swinging needle to show perusing is called a simple Multimeter. The principal multimeters were simple or meter development types. We will focus on the DMM since it is the transcendent instrument utilized in our calling today.
Picking the right meter for the occupation can be confounded in the event that you don't have the foggiest idea of what elements to search for and what they do. This part is intended to help you in choosing the multimeter that will turn out best for you. While choosing a decent quality meter, answer the accompanying inquiries:
What are the wellbeing parts of the multimeter?
What features would you say you are looking for?
What is the least demanding way to deal with benefits from your multimeter?
Which meter is fitting to the climate in which you will be working?
Utilizing and understanding the standard elements of the instrument will permit you to determine the advantages of fast and precise investigating and critical thinking.
To begin with, we will check out the significance of a DMM's precision, show, goal, reach, and RMS highlights. From that point forward, we investigate DMM choices like estimating voltage, current, and opposition, and other significant readings found on a quality meter.
DMM Accuracy
Precision alludes to how close the DMM estimation is to the real worth of the sign being estimated. Precision is communicated as a rate (%) of the perusing. The average precision of a quality DMM meter is ±1% or less. This implies assuming the genuine voltage is 120 V, the presentation will be inside ±1.2 V of the genuine voltage and show a perusing of 118.8 to 121.2 V. This degree of precision is useful for HVACR work. Simple multimeters, the meters with a needle-type development, are less precise. For instance, the run-of-the-mill precision of a decent simple multimeter is ±2%. This precision is at the midrange or center part of the simple scale.
The precision on the lower and upper closures of the simple scale drops drastically. At one-10th of full scale, the degree of precision drops by 20%. Simple multimeters can be utilized in our calling as long as the client knows about the error of the readings on their lower and upper scales. The simple meter is generally exact in the center half of the scale.
DMM Display
An advanced showcase is more straightforward for a specialist to utilize and comprehend than a simple meter. The simple meter requires the translation of different scales and assessment of the qualities that fall hidden therein. Conversely, with a DMM, a specialist can decide to show readings to a few decimal spots. This upgrades the precision of advanced meters.
Quality DMMs might have a structured presentation that shows changes and patterns in the deliberate sign. underneath the voltage perusing on the advanced showcase. At a full-scale perusing of 1,000 V, the bar beneath the advanced readout completely populates the reference chart. The DMM show is tough and less inclined to harm when dropped or when the meter range is surpassed when contrasted with instruments with a needle-type development.
DMM Resolution and Range
Goal alludes to how precise or fine an estimation a meter can take. By knowing the goal of a meter, the specialist can decide whether it is feasible to see an adjustment of the deliberate sign. For instance, in the 150-V reach, the meter can quantify voltage in 1-V additions. A particular meter would be chosen if half-volt augmentations were required. Have a DMM that can quantify volts, amps, or ohms in one-digit increases. You will see that most meters will quantify better compared to this, down to the tenths, like 120.2 V or 5.5 V. Better estimations are not typically needed in the HVACR business; truth be told, even decimal readings are not ordinarily needed, and now and then befuddle the amateur client of these instruments.
In outline, goal, as it identifies with a DMM, is the littlest change in estimated worth to which the instrument will react.
As the reach builds, the goal diminishes. In contrast to superior quality TV, the goal doesn't have anything to do with how clear or sharp the advanced presentation is introduced on the Multimeter screen.
To decide the reach and goal of your DMM, turn the meter to the volt, rotate current reach (ACV), and press the Range button. The Auto element on the presentation will vanish. Contingent upon the chosen range, the goal will differ. Here is an illustration of the reaches and goals of a main maker's advanced meter.
For the greatest goal, pick the least conceivable reach. To leave the manual Range mode, hold the Range button for 2 seconds. (Note: The system for leaving the manual Range mode differs among makers.)
One of the central stages of electrical investigating is voltage estimation. Subsequent to looking over the place of work and testing for a legitimate stockpile, voltage is normally the initial step taken while investigating. Assuming there is no voltage present, or then again in case the voltage is excessively low or too high, the issue should be amended prior to proceeding with the investigating system.
